Hawkeye® Blue Swing Prism Borescopes
6.0 / 8.0 / 9.0 mm Diameter

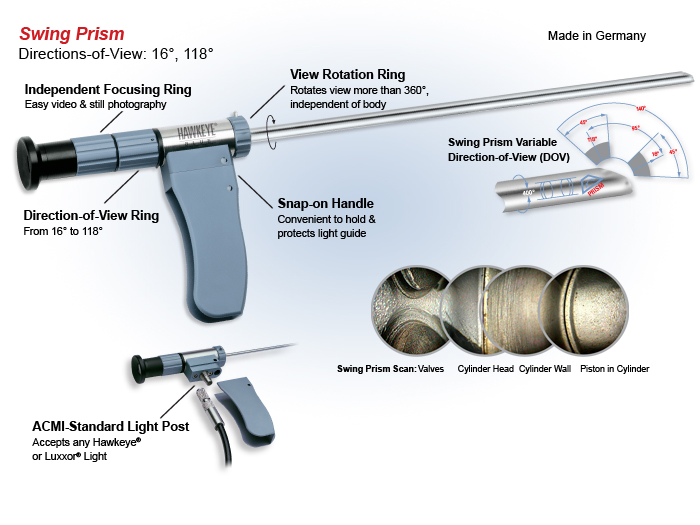

Hawkeye® Blue Swing Prism Rigid Endoscopes are so called because they have a tiny prism at the tip that pivots, or “swings”, to vary the direction-of-view from 16° to 118°. This is controlled simply by turning a ring on the borescope body.
This range also has a field of view of 45°, so combined with the range of DOV, these borescopes can effectively see through a range of -7° to 133°.
The focusing ring on the body of the borescope also allows you to rotate the borescope tube over more than 360°, sideways in any direction, without turning the body and facilitates image and video capture. These features make Blue Swing Prism Borescopes very easy and versatile to use.
In particular, they are ideal for applications such as the inspection of diesel engines, cylinders, pistons and valves and in the aerospace industry when inspecting aircraft for any FOD (foreign object damage or debris).
For further information or to arrange a demo and see one for yourself, contact us
Hawkeye Blue Swing Prism Specifications
Range available:
245 / 325 / 455 / 605 / 805 mm
For further information, please contact us
A range of options are available when selecting a Blue Swing Prism Endoscope Kit therefore we create kits specific to your inspection needs.
Contact us to discuss this in further details and arrange a demo.
